Create document and add QR code

Introduction

In this guide we will explore the Circularo option to insert QR code into the document.

This QR can be scanned for example with your mobile device and you will be redirected to one of the 3 options:

• Document preview

• Document detail

• Verification page

These options can be adjusted in the settings of your organization.

Read more about organization settings here - Organization Settings

Step 1 - Sign in (optional)

Sign user in.

Please note that this step is optional, we recommend you create an API key to be used as a token with all requests - Create new API key

Read more about authentication - Authentication

Endpoint

POST /login

Request

POST /login

Content-Type: application/json

{
  "name": "mary.griffin@circularo.com",
  "password": "#32Password1!",
  "tenant": "default"
}

Response

Note following properties in response object:

• token - In response object at position token.

  • It may have value of Fof8B91uvNH3E8iR6yl5dqKK0joltyZxoh0G9VJNuJc9IAAT1yIAxbwkzQ5mLIYX.

Step 2 - Upload file

Upload new PDF file to the Circularo storage from which the document will be created.

Read more about file creation in our Getting started section - Create file

Endpoint

POST /files/saveFile

Request

POST /files/saveFile?token=Fof8B91uvNH3E8iR6yl5dqKK0joltyZxoh0G9VJNuJc9IAAT1yIAxbwkzQ5mLIYX

Content-Type: multipart/form-data

{
  "file": "blob",
  "fileName": "My PDF file"
}

Response

Note following properties in response object:

• fileHash - In response object at position file.id.

  • It may have value of 03qN6Y99xOjz9sqv3HKZLuhoASYW9jRqvqPt4gGRmcZswrQkMhJjy3VU61ikAQD3.

The file is now created.

Step 3 - Create document from file

Create new document from existing PDF file in storage.

Read more about document creation - Create document

Read more about Circularo documents - Document structure

Endpoint

POST /documents

Request

POST /documents?token=Fof8B91uvNH3E8iR6yl5dqKK0joltyZxoh0G9VJNuJc9IAAT1yIAxbwkzQ5mLIYX

Content-Type: application/json

{
  "body": {
    "documentType": "d_default",
    "documentTitle": "My Document",
    "pdfFile": {
      "content": "03qN6Y99xOjz9sqv3HKZLuhoASYW9jRqvqPt4gGRmcZswrQkMhJjy3VU61ikAQD3"  //specify existing file hash
    }
  },
  "definitionType": "ext",
  "workflow": "wf_archive"
}

Response

Note following properties in response object:

• barcode - In response object at position results[0].barcode.

  • It may have value of jBsfMiXi6TtgsnKev5lYYm5aaFOZ6dxXIlQ0q9Iny0wEvT5ZItNp6YWSlSk6MeBf.

• documentId - In response object at position results[0].documentId.

  • It may have value of 1a938dec-32c0-4c2d-858e-a9ca3aa85ccf.

The PDF document is now created. Save the document id and barcode hash since it will be needed in next step.

Step 4 - Retrieve document info

Retrieve document information. This step is required in order to obtain document version which is needed in following requests.

Read more about document retrieval - Retrieve the document

Endpoint

GET /documents/:documentId

Request

GET /documents/1a938dec-32c0-4c2d-858e-a9ca3aa85ccf?token=Fof8B91uvNH3E8iR6yl5dqKK0joltyZxoh0G9VJNuJc9IAAT1yIAxbwkzQ5mLIYX

Response

Note following properties in response object:

• barcode - In response object at position results[0].barcode.

  • If you did not save the barcode hash before you can retrieve it now.

  • It may have value of jBsfMiXi6TtgsnKev5lYYm5aaFOZ6dxXIlQ0q9Iny0wEvT5ZItNp6YWSlSk6MeBf.

• documentVersion - In response object at position results[0]._version.

  • It may have value of 3.

Returned object contains additional information about the document.

If any of following endpoint fails with status code '409 - Version mismatch', please call this endpoint again to receive updated document version. There may be some background tasks that change document version after it is created.

Step 5 - Add barcode to document

Now that the document is created we can add (annotate the document) QR code.

We need:

• document ID

• document version

• barcode hash

Endpoint

PUT /documents/annotate/:documentVersion

Request

PUT /documents/annotate/3?token=Fof8B91uvNH3E8iR6yl5dqKK0joltyZxoh0G9VJNuJc9IAAT1yIAxbwkzQ5mLIYX

Content-Type: application/json

{
  "id": "1a938dec-32c0-4c2d-858e-a9ca3aa85ccf",  //document ID
  "images": [
    {
      "comment": "",
      "position": {  //position of the barcode
        "percentX": 0.8,
        "percentY": 0.5,
        "percentWidth": 0.1,
        "percentHeight": 0.07071043771043767
      },
      "pages": [  //which page to add it to
        1
      ],
      "blob": "jBsfMiXi6TtgsnKev5lYYm5aaFOZ6dxXIlQ0q9Iny0wEvT5ZItNp6YWSlSk6MeBf",  //barcode hash
      "subtype": "image_barcode"
    }
  ]
}

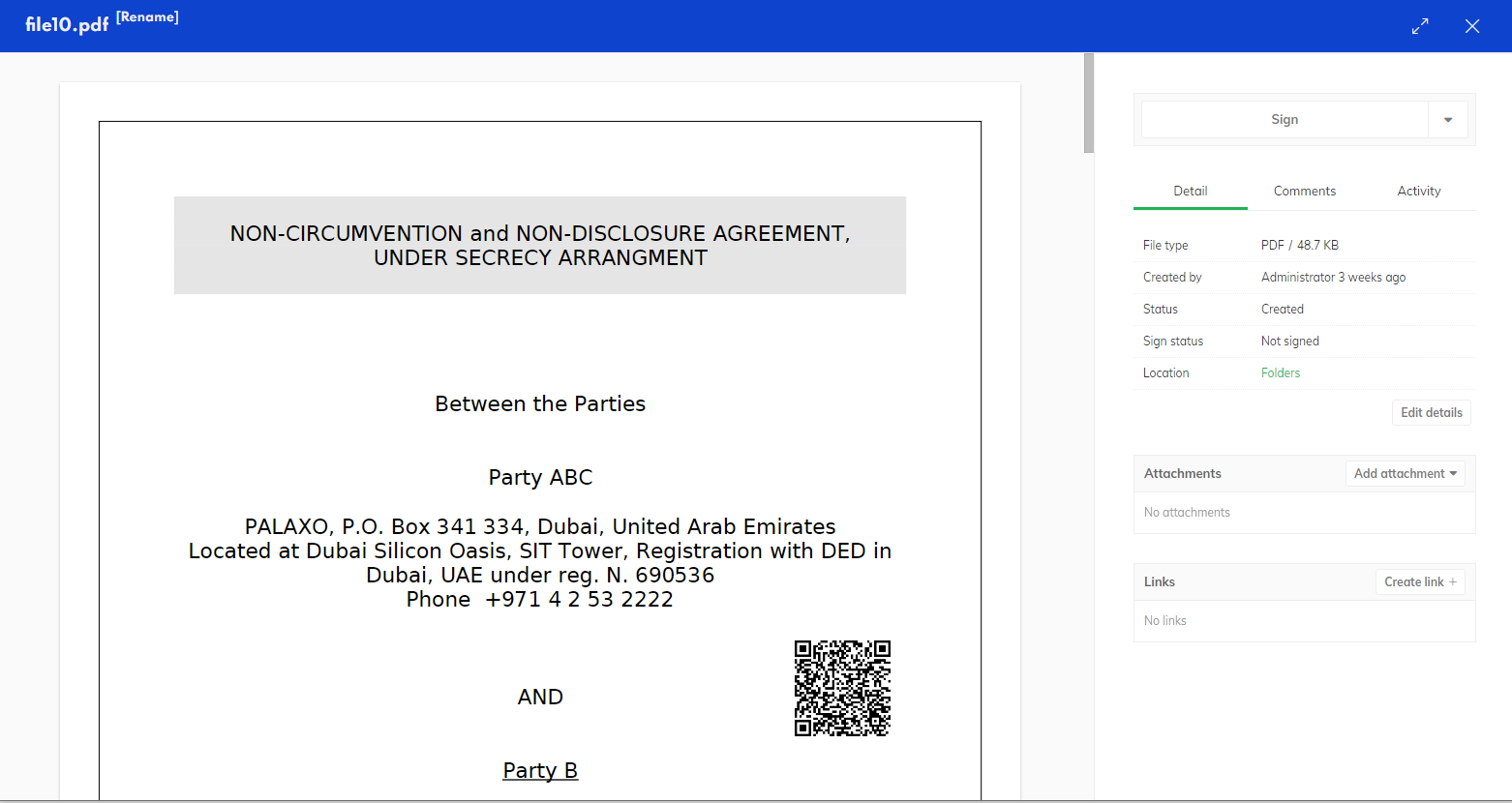

Now the document is annotated with the QR code:
